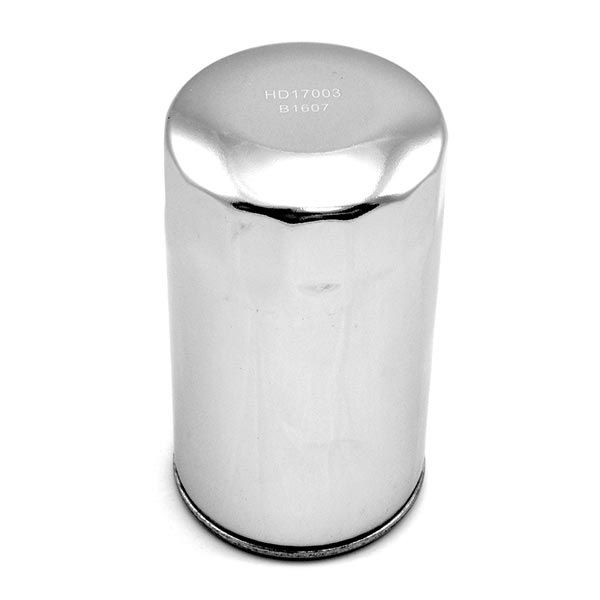

Filtru de ulei MIW HD17003 (alt. HF173C) for HD 1340 FXB 1980-1982, FXD / FXDS 1996-1998, FXDB 1991-1992, FXDC 1992, FXDL / FXDWG 1993-1998

Product quality

Engine protection:

The most important feature for engine protection is the "filtering ability". This quality filter media for a motorcycle oil filters is produced by few companies worldwide. Oil filter papers are generally made of a blend of cellulose (pulp) and other types of fibers, like synthetic fibers. The introduction of synthetic fibers improves the the filtering efficiency and its resistance to high temperatures and pressure. All MIW filters meet OEM efficiency requirements in order to allow higher maintenance intervals and extended engine life.

Components of spin on filters

1. Filter Housing.
2. Spring (Helicoidal or Leaf Type).
3. By pass Valve - By pass valve openingpressure. Filter Cartridge.
4. Anti Drain Valve

Ahlstrom Paper from Finland. The heart of a good filter.
